Empirical Receiver Operating Characteristic Curve

Source: R/geom_roc.R
geom_roc.Rd

Display the empirical ROC curve. Useful for characterizing the classification accuracy of continuous measurements for predicting binary states

Usage

GeomRoc

geom_roc(
  mapping = NULL,
  data = NULL,
  stat = "roc",
  n.cuts = 10,
  arrow = NULL,
  lineend = "butt",
  linejoin = "round",
  linemitre = 1,
  linealpha = 1,
  pointalpha = 1,
  pointsize = 0.5,
  labels = TRUE,
  labelsize = 3.88,
  labelround = 1,
  na.rm = TRUE,
  cutoffs.at = NULL,
  cutoff.labels = NULL,
  position = "identity",
  show.legend = NA,
  inherit.aes = TRUE,
  ...
)

Format

An object of class GeomRoc (inherits from Geom, ggproto, gg) of length 6.

Arguments

mapping

Set of aesthetic mappings created by aes(). If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.

data

The data to be displayed in this layer. There are three options:

If NULL, the default, the data is inherited from the plot data as specified in the call to ggplot().

A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame. See fortify() for which variables will be created.

A function will be called with a single argument, the plot data. The return value must be a data.frame, and will be used as the layer data. A function can be created from a formula (e.g. ~ head(.x, 10)).

stat

Use to override the default connection between geom_roc and stat_roc.

n.cuts

Number of cutpoints to display along each curve

arrow

Arrow specification, as created by arrow

lineend

Line end style (round, butt, square)

linejoin

Line join style (round, mitre, bevel)

linemitre

Line mitre limit (number greater than 1)

linealpha

Alpha level for the lines, alpha.line is deprecated

pointalpha

Alpha level for the cutoff points, alpha.point is deprecated

pointsize

Size of cutoff points, size.point is deprecated

labels

Logical, display cutoff text labels

labelsize

Size of cutoff text labels

labelround

Integer, number of significant digits to round cutoff labels

na.rm

Remove missing values from curve

cutoffs.at

Vector of user supplied cutoffs to plot as points. If non-NULL, it will override the values of n.cuts and plot the observed cutoffs closest to the user-supplied ones.

cutoff.labels

vector of user-supplied labels for the cutoffs. Must be a character vector of the same length as cutoffs.at.

position

A position adjustment to use on the data for this layer. This can be used in various ways, including to prevent overplotting and improving the display. The position argument accepts the following:

  • The result of calling a position function, such as position_jitter(). This method allows for passing extra arguments to the position.

  • A string naming the position adjustment. To give the position as a string, strip the function name of the position_ prefix. For example, to use position_jitter(), give the position as "jitter".

  • For more information and other ways to specify the position, see the layer position documentation.

show.legend

logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped. FALSE never includes, and TRUE always includes. It can also be a named logical vector to finely select the aesthetics to display. To include legend keys for all levels, even when no data exists, use TRUE. If NA, all levels are shown in legend, but unobserved levels are omitted.

inherit.aes

If FALSE, overrides the default aesthetics, rather than combining with them. This is most useful for helper functions that define both data and aesthetics and shouldn't inherit behaviour from the default plot specification, e.g. annotation_borders().

...

Other arguments passed on to layer()'s params argument. These arguments broadly fall into one of 4 categories below. Notably, further arguments to the position argument, or aesthetics that are required can not be passed through .... Unknown arguments that are not part of the 4 categories below are ignored.

  • Static aesthetics that are not mapped to a scale, but are at a fixed value and apply to the layer as a whole. For example, colour = "red" or linewidth = 3. The geom's documentation has an Aesthetics section that lists the available options. The 'required' aesthetics cannot be passed on to the params. Please note that while passing unmapped aesthetics as vectors is technically possible, the order and required length is not guaranteed to be parallel to the input data.

  • When constructing a layer using a stat_*() function, the ... argument can be used to pass on parameters to the geom part of the layer. An example of this is stat_density(geom = "area", outline.type = "both"). The geom's documentation lists which parameters it can accept.

  • Inversely, when constructing a layer using a geom_*() function, the ... argument can be used to pass on parameters to the stat part of the layer. An example of this is geom_area(stat = "density", adjust = 0.5). The stat's documentation lists which parameters it can accept.

  • The key_glyph argument of layer() may also be passed on through .... This can be one of the functions described as key glyphs, to change the display of the layer in the legend.

Computed variables

false_positive_fraction

estimate of false positive fraction

true_positive_fraction

estimate of true positive fraction

cutoffs

values of m at which estimates are calculated

Aesthetics

geom_roc understands the following aesthetics (required aesthetics are in bold):

  • x The FPF estimate. This is automatically mapped by stat_roc

  • y The TPF estimate. This is automatically mapped by stat_roc smallest level in sort order is assumed to be 0, with a warning

  • alpha

  • color

  • fill

  • linetype

  • size

See also

See geom_rocci for displaying rectangular confidence regions for the empirical ROC curve, style_roc for adding guidelines and labels, and direct_label for adding direct labels to the curves. Also export_interactive_roc for creating interactive ROC curve plots for use in a web browser.

Examples

D.ex <- rbinom(50, 1, .5)
rocdata <- data.frame(D = c(D.ex, D.ex),
                   M = c(rnorm(50, mean = D.ex, sd = .4), rnorm(50, mean = D.ex, sd = 1)),
                   Z = c(rep("A", 50), rep("B", 50)))

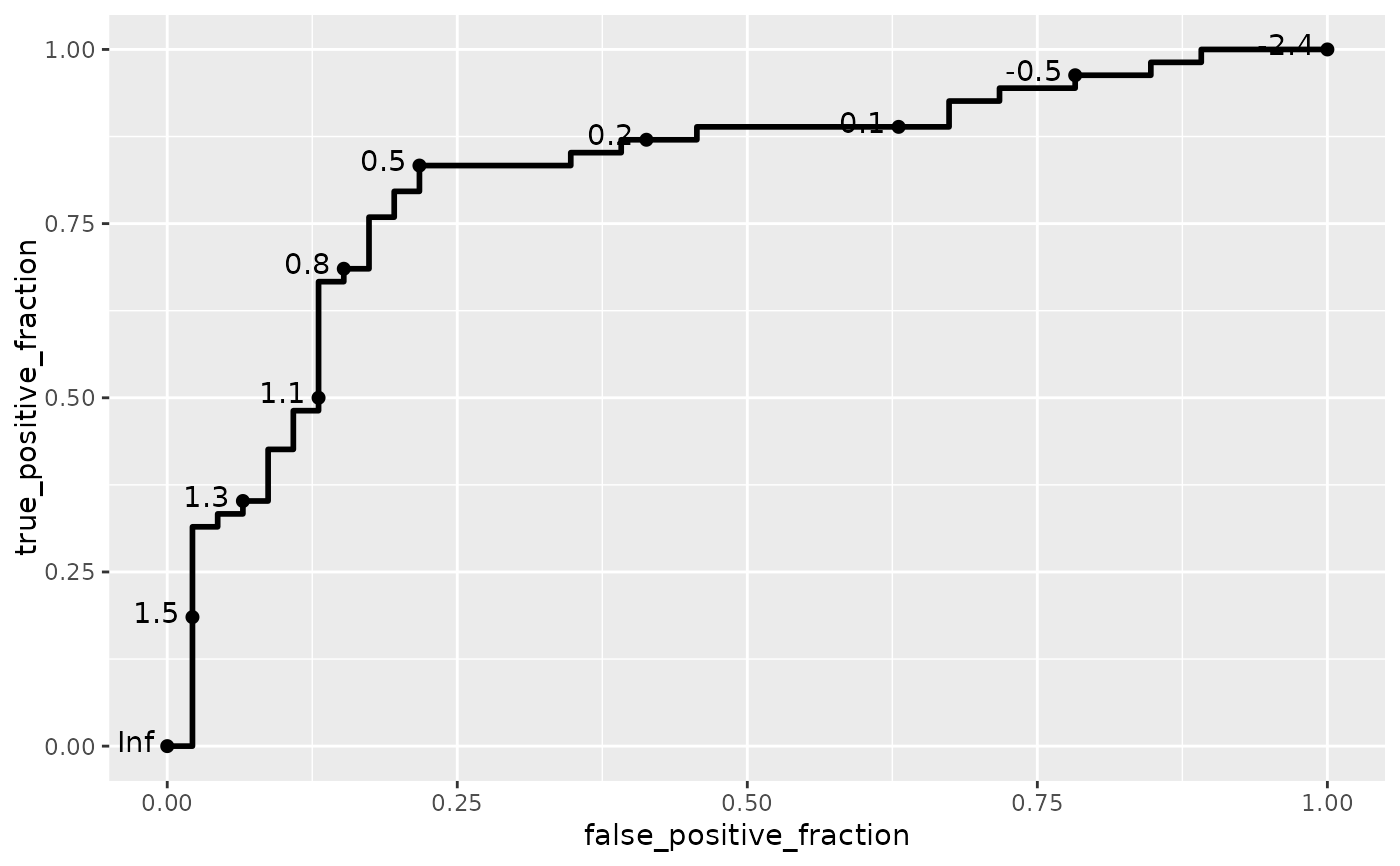

ggplot(rocdata, aes(m = M, d = D)) + geom_roc()

# \donttest{
ggplot(rocdata, aes(m = M, d = D, color = Z)) + geom_roc()

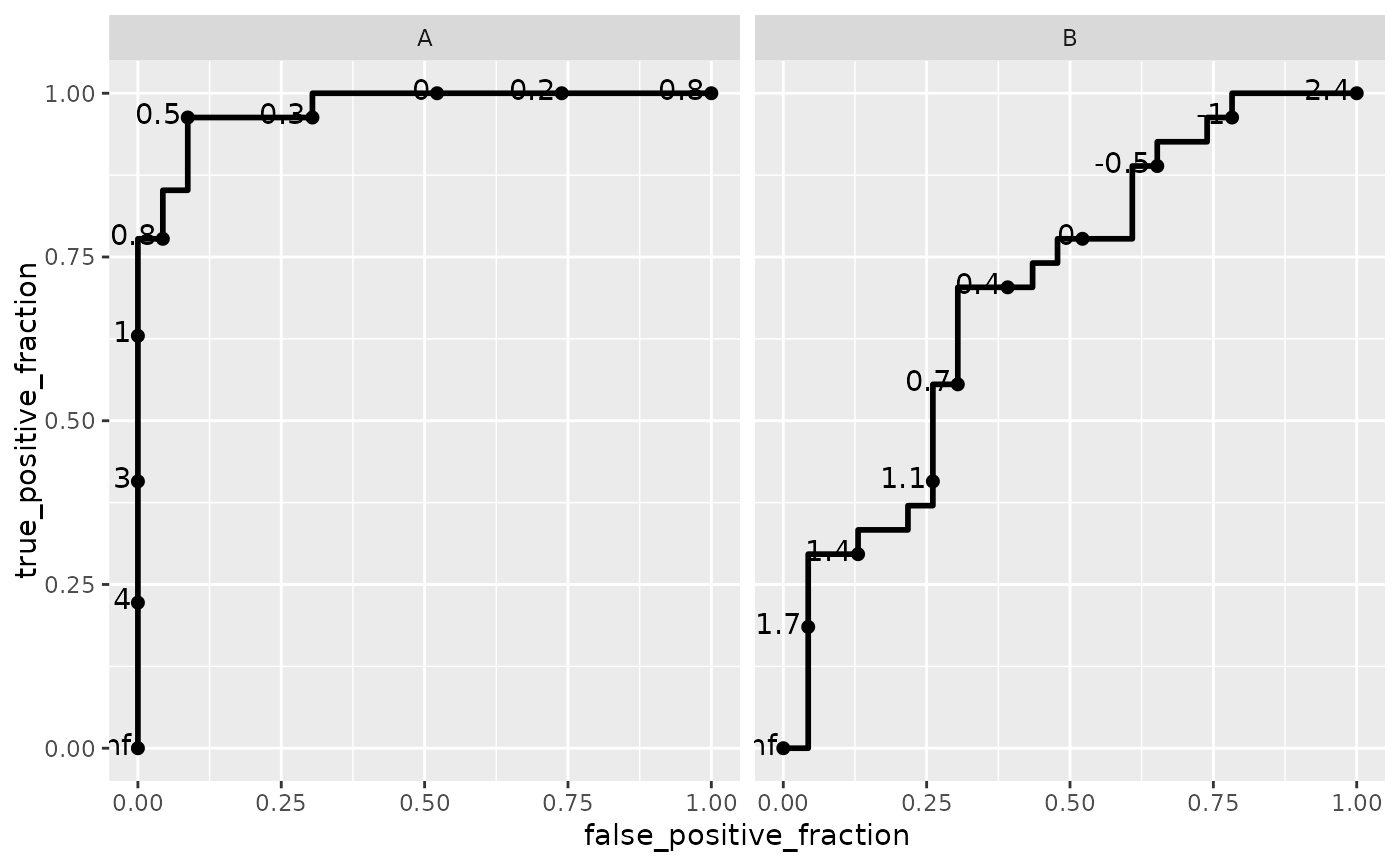

ggplot(rocdata, aes(m = M, d = D)) + geom_roc() + facet_wrap(~ Z)

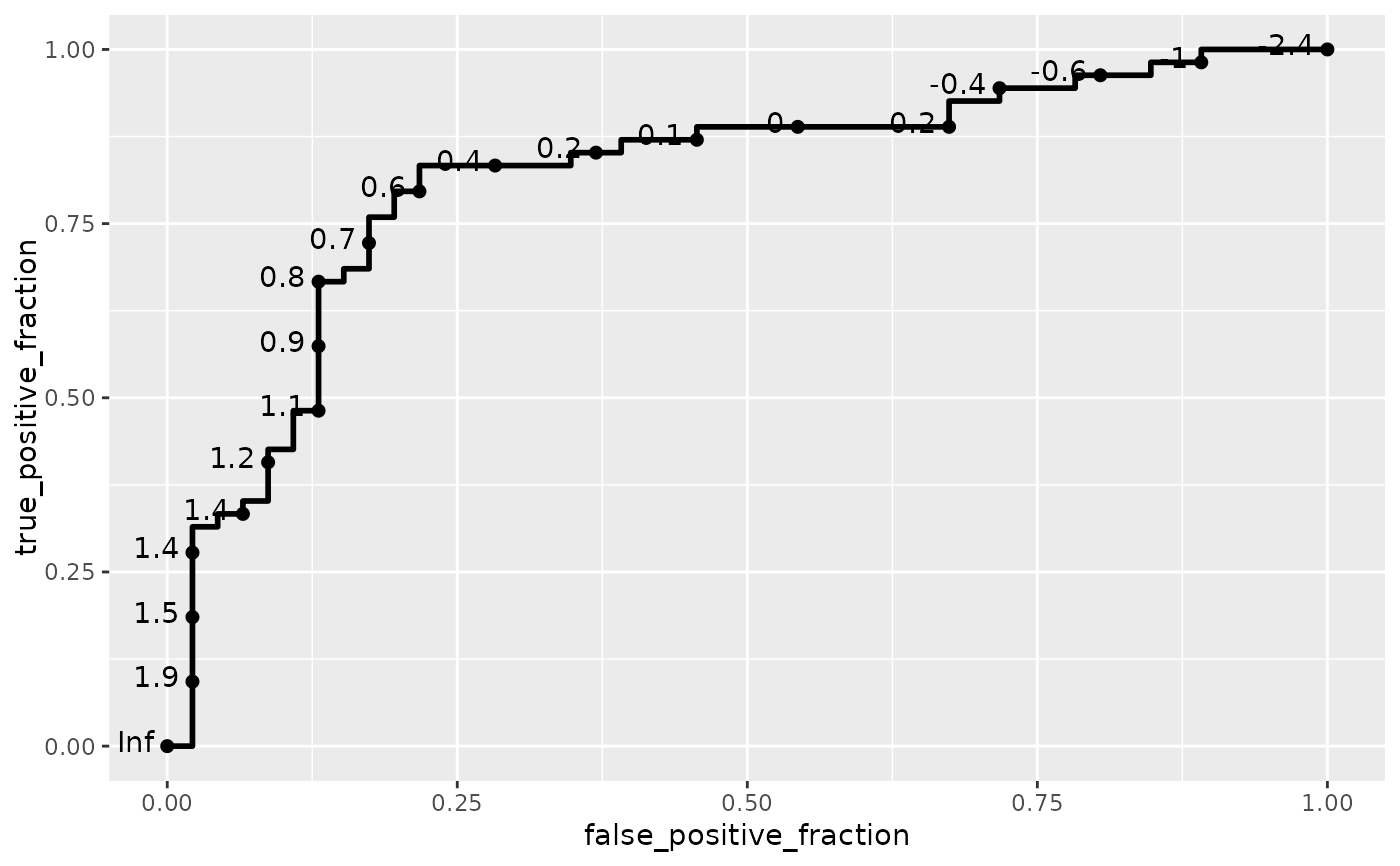

ggplot(rocdata, aes(m = M, d = D)) + geom_roc(n.cuts = 20)

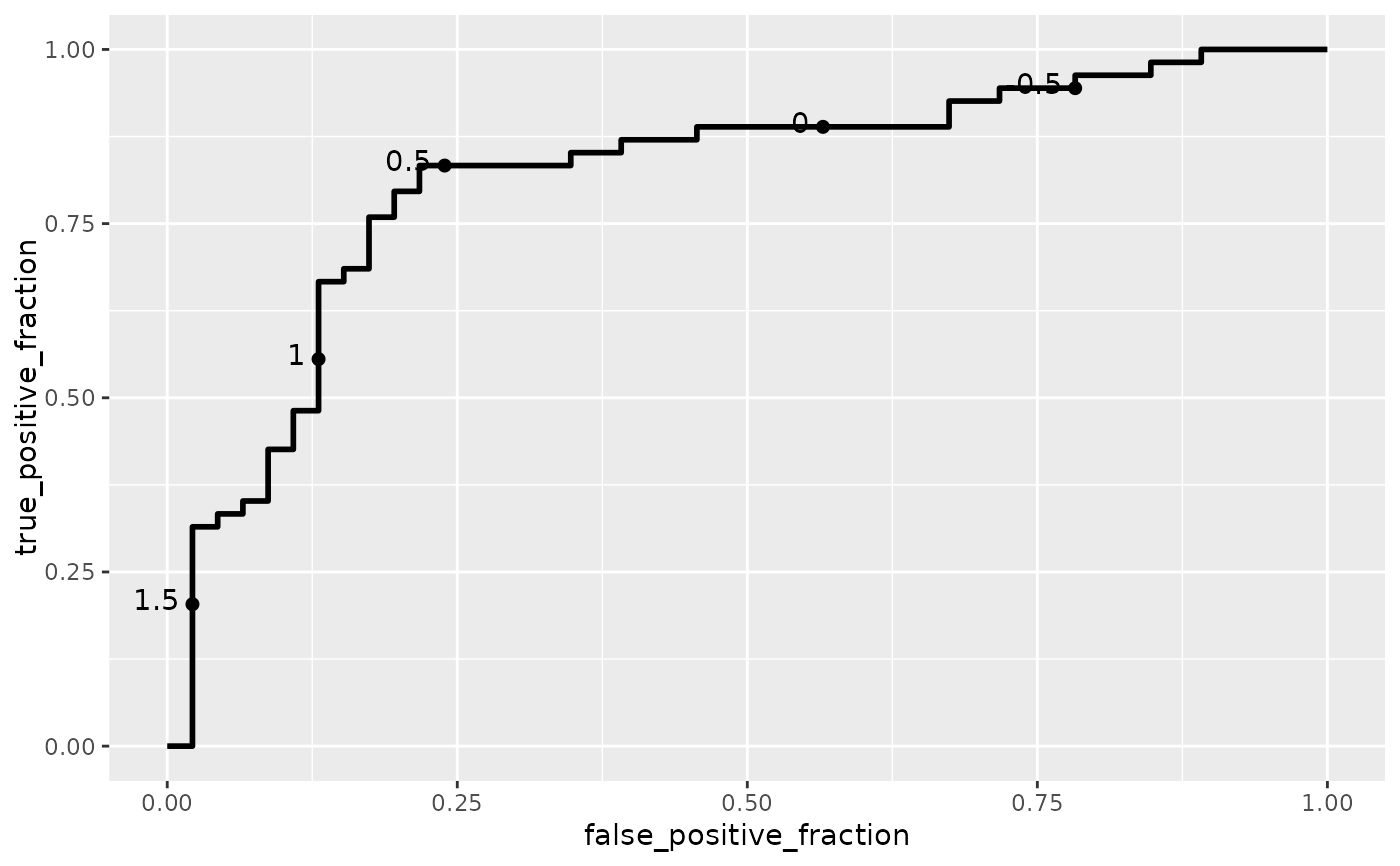

ggplot(rocdata, aes(m = M, d = D)) + geom_roc(cutoffs.at = c(1.5, 1, .5, 0, -.5))

ggplot(rocdata, aes(m = M, d = D)) + geom_roc(labels = FALSE)

ggplot(rocdata, aes(m = M, d = D)) + geom_roc(size = 1.25)

# }
